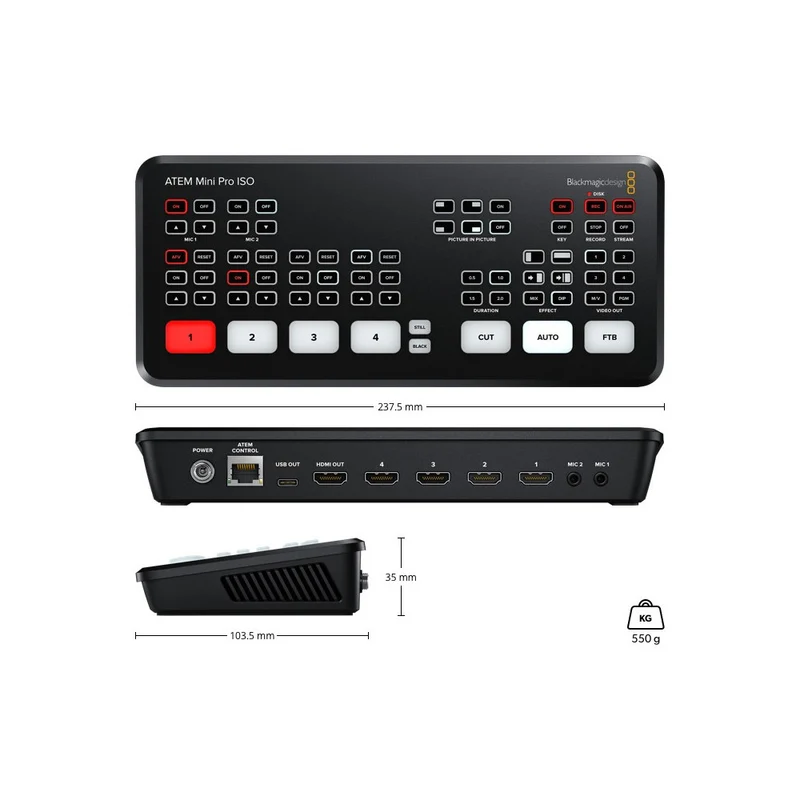

Blackmagic Design ATEM Mini Pro ISO

CARATTERISTICHE

Con l'ATEM Mini Pro ISO di Blackmagic Design si ottiene uno switcher live efficiente a un prezzo assolutamente ragionevole. Dispone di 4 ingressi HDMI, uscita webcam USB, mixer audio con EQ e dinamica, DVE 2D, transizioni, green screen chroma key, 20 still per titoli e molto altro. Inoltre, hai la registrazione su dischi USB in formato H.264, un motore di streaming hardware integrato per YouTube Live, Facebook, Twitch e altro, e anche il multiview che ti permette di vedere tutte le tue telecamere su un unico monitor. Il modello ATEM Mini Pro ISO include anche la registrazione di 5 flussi, compresi tutti gli input come feed puliti per l'editing, e anche un file di progetto DaVinci per una rapida elaborazione dell'editing e il relinking dei file Blackmagic RAW per la finitura in Ultra HD.

SPECIFICHE

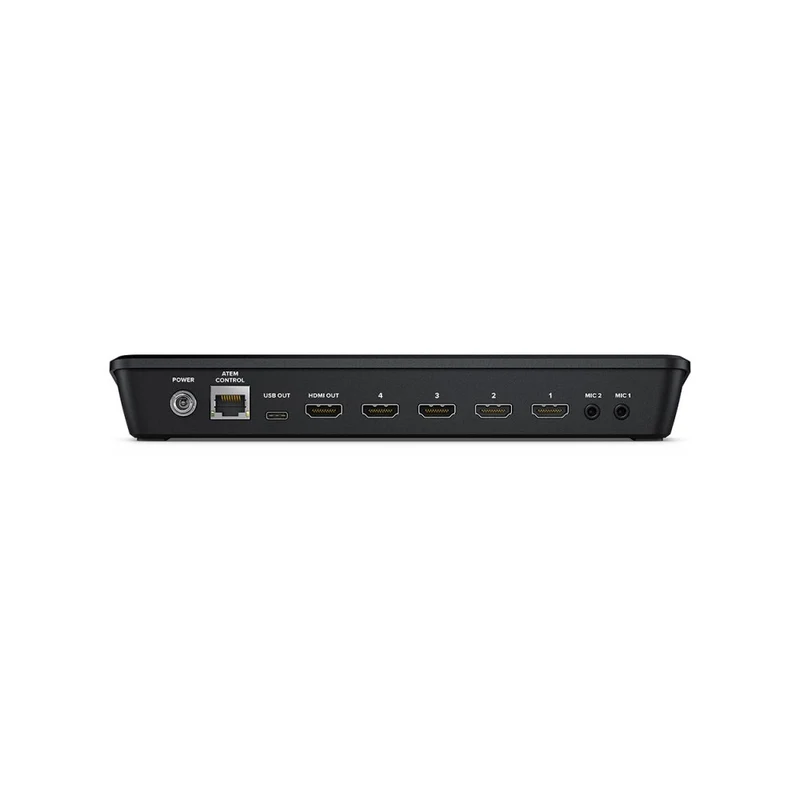

Connections

• • • Total Video Inputs: 4
    • Total Outputs: 2
    • Total Aux Outputs: 1
    • Total Audio Inputs: 2 x 3.5mm stereo mini jack.
    • Total Audio Outputs: None, embedded audio only.
    • Timecode Connection: None
    • HDMI Video Inputs: 4 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio.
    • Video Input Re-Sync: On all 4 HDMI inputs.
    • Frame Rate and Format Converters: On all 4 HDMI inputs.
    • HDMI Program Outputs: 1
    • Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
    • Computer Interface: 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.

Product Specifics

• • • Upstream Keyers: 1
    • Downstream Keyers: 1
    • Advanced Chroma Keyers: 1
    • Linear/Luma Keyers: 2
    • Transition Keyer: DVE only.
    • Total Number of Layers: 5
    • Pattern Generators: 1
    • Color Generators: 2
    • DVE with Borders and Drop Shadow: 1
    • Interface: Minimum monitor resolution of 1366 x 768.

Audio

• • • Audio Mixer
      • 6 input x 2 channel mixer
      • Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
      • Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
    • Analog Input: Unbalanced stereo
    • Analog Input Delay: Up to 8 frames
    • Input Impedance: 1.8k
    • Max Input Level: +6dBV
    • Mic Plug In Power: Available on both 3.5mm mini jack connections.

Direct Streaming: ATEM Mini Pro ISO supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP).

Power Requirements

• • • Power Supply: 1 x External 12V power supply.
    • Power Usage: 36W

What's Included

• • • ATEM Mini Pro ISO
    • External 12V DC power supply with international socket adapters

Warranty: 12 Months Limited Manufacturer's Warranty.
