Blackmagic Design ATEM SDI

CARATTERISTICHE

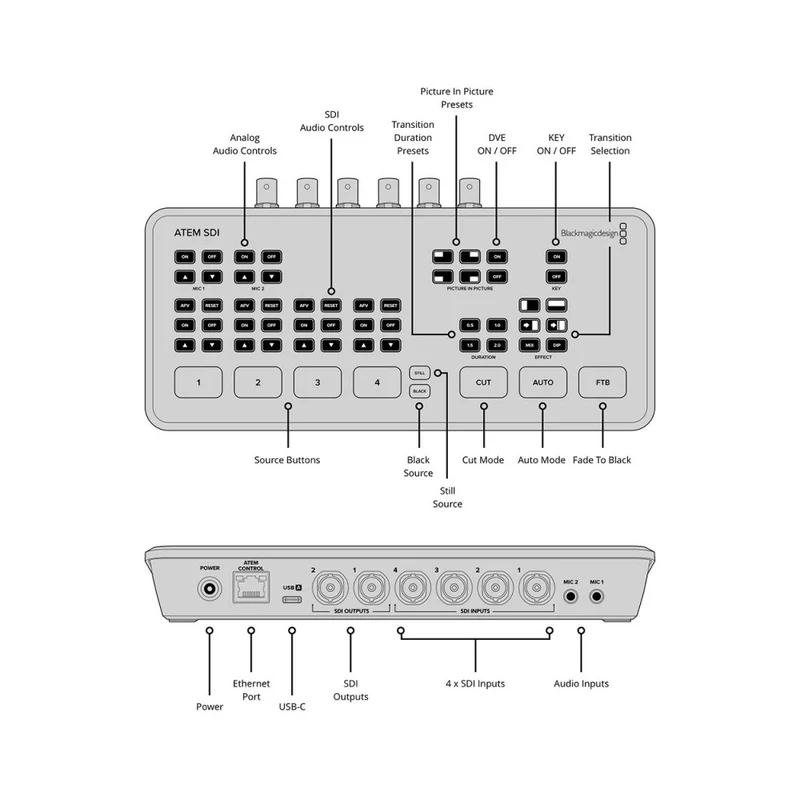

ATEM SDI si configura in un attimo ed è facile da usare. Offre 4 ingressi SDI con conversione di standard, USB per webcam, 2 uscite SDI, mixer audio Fairlight con EQ e dinamica, DVE per immagine nell’immagine, effetti per transizioni, chiave cromatica per green screen, Media Pool da 20 fotogrammi per i titoli, e ATEM Software Control.

SPECIFICHE

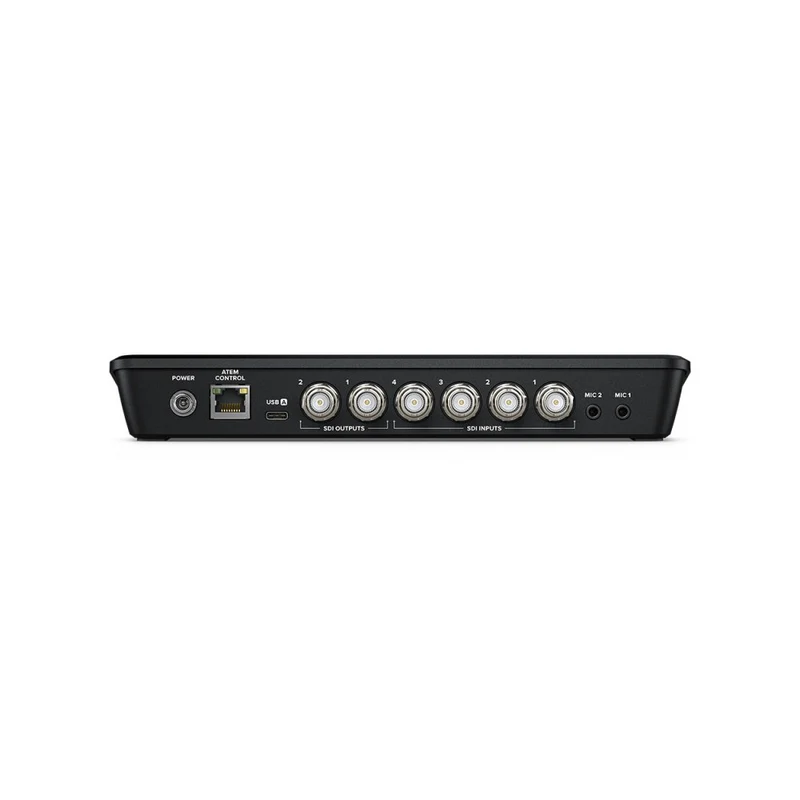

Connections

Total Video Inputs: 4

Total Outputs: 3

Total Aux Outputs: 2

Total Audio Inputs: 2 x 3.5mm stereo mini jack

Total Audio Outputs: None, embedded audio only

Timecode Connection: None

SDI Video Inputs: 4 x 3G-SDI, 10-bit HD switchable  |  2 channel embedded audio

Video Input Re-Sync: On all 4 SDI inputs

Frame Rate and Format Converters: On all 4 SDI inputs

SDI Program Outputs: 2

Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection

Computer Interface: 1 x USB Type-C 2.0 for webcam out, software control, software updates and panel connection

Standards

HD Video Input Standards: 720p50, 720p59.94, 720p60  |  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60  |  1080i50, 1080i59.94, 1080i60

HD Video Output Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

Video Streaming Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

Ultra HD Video Standards: None

Video Sampling: 4:2:2 YUV

Color Precision: 10-bit

Color Space: Rec 709

Colorspace Conversion: Hardware based real time

Product Specifics

Upstream Keyers: 1

Downstream Keyers: 1

Advanced Chroma Keyers: 1

Linear/Luma Keyers: 2

Transition Keyer: DVE only

Total Number of Layers: 5

Pattern Generators: 1

Color Generators: 2

DVE With Borders and Drop Shadow: 1

Interface: Minimum monitor resolution of 1366 x 768

Audio

Audio Mixer: 6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.

Analog Input: Unbalanced stereo

Analog Input Delay: Up to 8 frames

Input Impedance: 1.8k

Max Input Level: +6dBV

Mic Plug In Power: Available on both 3.5mm mini jack connections

Media Player

Media Players: 1

Channels: Fill and key for each Media Player

Media Pool Still Image Capacity: 20 with fill and key

Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF

Control

Control Panel: Built in control panel. Software control panel included. Supports optional hardware panel.

Control Panel Connection: Ethernet supports 10/100 BaseT. Allows direct connection between panel and chassis, or via network. Also used for updating the software. ATEM SDI supports direct USB-C connection.

Control Panel Compatibility: Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel and ATEM 2 M/E Broadcast Panel.

Control Panel Included: ATEM Software Control Panel included free for Mac 11.0 Big Sur, Mac 12.0 Monterey or later and Windows 10 or 11.

Software

Software Updates: Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.

Configuration: Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.

Operating Systems

Mac 11.0 Big Sur, Mac 12.0 Monterey or later

Windows 10 and 11

Power Requirements

Power Supply: 1 x External 12V power supply

Power Usage: 18W

Environmental Specifications

Operating Temperature: 5° C to 40° C (41° - 104° F)

Storage Temperature: -10° to 60° C (14° to 140° F)

Relative Humidity: 0% to 90% non-condensing

What's Included

ATEM SDI

External 12V DC power supply with international socket adapters
