EMS LB 12 MKII - 8 Ohm - pair (2 units)

The EMSLB12 MKII – (sold in pairs) a full-range loudspeaker with a 12-inch double membrane, built for audiophiles. New enhanced magnetic circuit design provides same performance with reduced mass. Efficiency is close to 98 db/W/m.

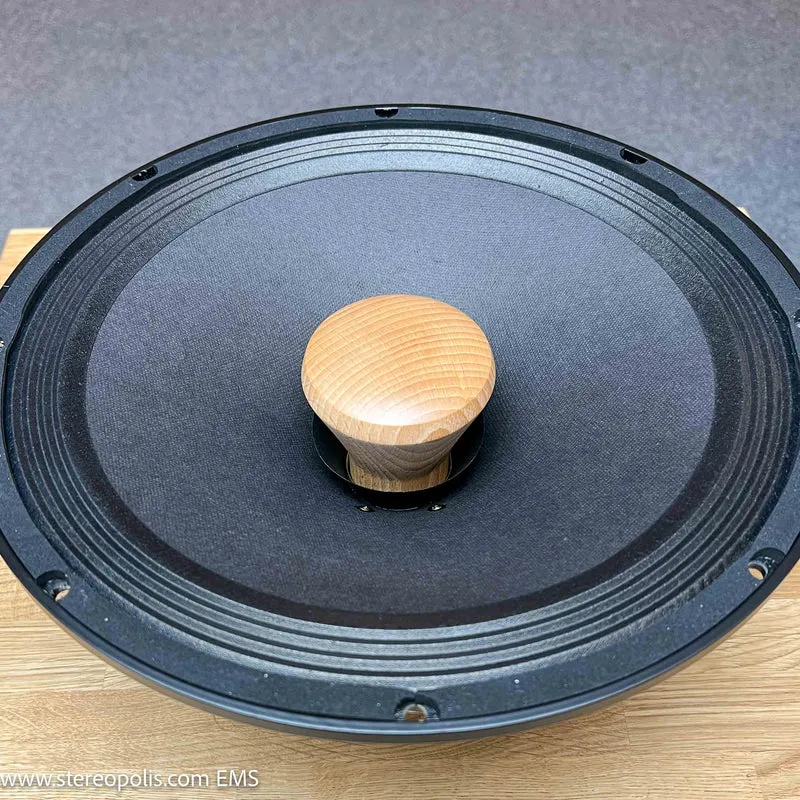

Thanks to its wooden phase plug, it delivers real omni-directional sound.
The sound is clear and coherent, “fleshy”, splendid with human voices. Precision and coloration are excellent, regardless of the genre of music you listen to. Spectacular bass impact. Micro details are abundantly present.

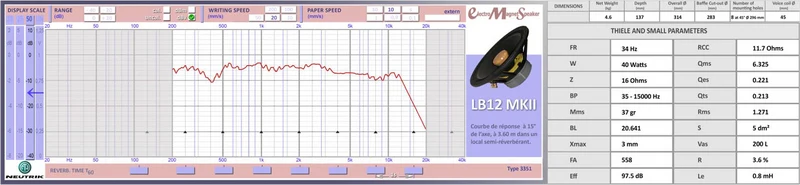

Technical details

Efficiency 1 W/1m at Fs	97.5 dB
Frequency response	34-15 000 Hz
Impedance Ω	8 Ω
Power max. RMS	40 W
Weight	4.6 kg
Linear excursion	3 mm
Diameter (basket)	314 mm
Diameter fixation holes	296 mm
Diameter drilling enclosure	283 mm
Depth HP	137 mm
Fs	34 Hz
Re	11.7 Ω
Qts	0.213
Qe	0.221
Qm	6.325
Vas	200 L
Bl	20.641
Mms	37 gr
Sd	500 cm²
